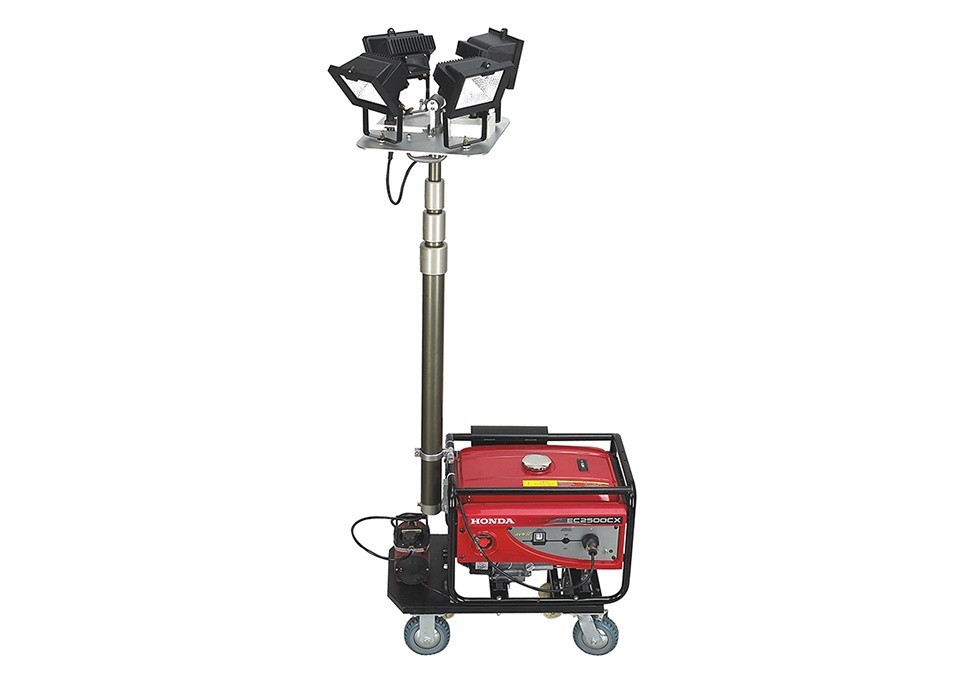

The SFD6000A type all-round automatic lifting work light developed and produced by the company is designed to meet the needs of large-scale and high-brightness lighting at work sites such as railway, aviation, electric power, public security, etc. for large-scale construction operations, accident emergency repairs, emergency and disaster relief.
It consists of four 500W high-efficiency and energy-saving Philips brand lamp holders. Each lamp holder can be individually adjusted and rotated at large angles up and down, left and right according to the needs of the site to achieve 360° all-round lighting; the lamp holders can also be distributed on the lamp panel to illuminate in four different directions. If you need four lamp holders to illuminate in the same direction, you can flip the lamp panel as a whole within 250° in the direction of the opening and rotate 360° to the left and right with the cylinder as the axis; the overall lighting takes into account the distance and near, the lighting brightness is high, the range is large, and the Philips bulb has a long life.
Irradiation range
Three telescopic cylinders are selected as the lifting adjustment method, with a maximum lifting height of 4.5 meters; the beam irradiation angle can be adjusted by rotating the lamp holder up and down, and the light coverage radius reaches 35-55 meters.
Lighting time
The generator set can be used directly for power supply, and the 220V MAINS power can also be connected for long-term lighting; the generator set can be used for power supply and the continuous working time can reach 13 hours when the fuel is filled at a time.
Easy to operate
Through wireless remote control, the opening and closing of each lamp can be controlled separately within a range of 50 meters, and the lifting of the telescopic cylinder can be quickly controlled by using an electric or manual air pump.
Adapt to the place
The light panel, cylinder and generator set are the overall structure, and the bottom of the generator set is equipped with a universal wheel and a rail wheel, which can run on potholes and uneven roads and railway tracks.
Use environment
The whole is made of high-quality imported metal materials, with compact structure and stable performance, which ensures normal operation under various harsh environments and climatic conditions, and has a rainproof, water-spraying, and wind-resistant rating of 8.
| Rated voltage | 220V |
| Bulb lamp head power | 4x500W |
| Luminous flux of lamp holder | 4x10000Lm |
| Average service life | 3000h |
| Continuous working time | MAINS power supply for a long time, the generator set is filled with fuel for 13h at a time |
| The lifting height of the telescopic cylinder | 1800mm-4500mm |
| Lifting time | 30S |
| Rated output voltage of generator set | 220V |
| Rated output power/fuel tank rated capacity | 2000W/15L |
| Dimensions (package size) | Generator set 810x520x725mm Light panel assembly 545x505x405mm Telescopic cylinder 1740x220x175mm |
| Weight light panel | 8Kg |
| Telescopic cylinder/generator set | 8/75Kg |
